Type: 1620

Description

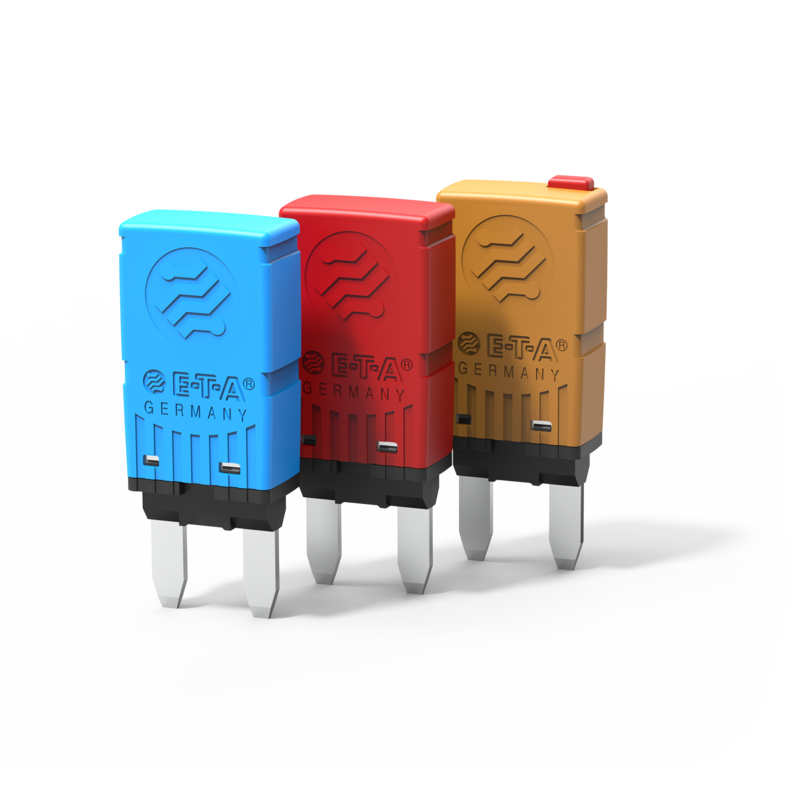

Single pole, thermal miniaturised circuit breaker designed for automotive applications. Fits into fuse blocks designed to ISO 8820-3, Type F.

Automatic reset (for DC 12 V only) and open circuit (modified reset to SAE) version optional. Open circuit version ensures contacts staying open as long as power is on. The circuit breaker will reset after the load is removed. Particularly suitable for installation in inaccessible locations.

Current ratings correspond to those of blade fuses. Clear colour coding of the ratings: blade fuse and circuit breaker of the same colour have the same rating.

Meets the requirements of SAE J553.

Standard trip curve to ISO 10924.

Voltage rating
  • DC 12 V
  • DC 24 V
Current ratings from 5A until 30A  DC 12 V
from 5A until 25A  DC 24 V
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
push button
Typical life 300 operations at 2 x IN
Interrupting capacity Icn ≥ 3 break operations at 150 A, or

≥ 1 break operation at 2,000 A

Applications

  • Automobiles
  • Commercial Vehicles
  • Watercraft & Vehicles
