Electronic Overcurrent Protection

Typical Applications

Ideally suited to protect equipment components in industrial applications and supply lines which are fed by means of a DC24V switch-mode power supply.

Technology

Electronic overcurrent protection prevents dips of the output voltage of switched mode power supplies both in the event of short circuit and overload. At the same time these devices provide selective protection or disconnection. Switching high capacitive loads and indicating a functional error is possible without any problems. Fault indication is by means of LEDs and auxiliary contacts. This helps with trouble-shooting and increases machine run times.

Typ ESS22-T von E-T-A: Das Gerät ESS22-T erweitert die Produktgruppe »Elektronische Schutzschalter« für DC 24 V Anwendungen.

ESS22-T

Electronic circuit breaker, ESS22-T, DC 24 V, rail mounting, fixed current ratings, no. of channels 1 (no. of poles 2), physical isolation, 2-pole

Typ ESS30-S von E-T-A: mit galvanischer Trennung; einzigartige Elektronischer Überstromschutz für DC 24 V Anwendungen

ESS30-S

Electronic circuit breakers, ESS30-S, DC 24 V, pluggable, fixed and adjustable current ratings, no. of channels 1, physical isolation, 1 pole

ESS31-T

Electronic circuit breaker, ESS31-T, DC 24 V, rail mounting, fixed current ratings, no. of channels 1, physical isolation, 1-pole

Typ ESX10 von E-T-A: Der elektronische Sicherungsautomat ESX10 schützt jeden Lastkreis vor Überlast und Kurzschluss.

ESX10

Electronic circuit protector, ESX10, DC 24 V, plug-in type, fixed current rating, no. of channels 1

Typ ESX10-S von E-T-A: ESX10-Sxxx erweitert die Produktgruppe »Elektronischer Überstromschutz« für DC 24 V Anwendungen.

ESX10-S

Electronic circuit protector, ESX10-S, DC 24 V, plug-in type, variable current ratings, no. of channels 1

ESX10-T.-DC 24 V

Electronic circuit protector, ESX10-T-DC24V, DC 24 V, rail mounting, fixed, variable current ratings, no. of channels 1

Typ ESX10-TB-101-DC24V-16A von E-T-A: erweitert die Produktgruppe »ESX10-T.-DC24V«

ESX10-TB-DC24V-16A

Electronic circuit protector, ESX10-TB-16A, DC 24 V, rail mounting, fixed current rating, no. of channels 1

Typ ESX10-TC-12 V von E-T-A: Erweitert die Produktgruppe »Elektronischer Überstromschutz« für DC 12 V-Anwendungen

ESX10-TC DC 12 V

Electronic circuit protector, ESX10-TC-DC12V, DC 12 V, rail mounting, fixed current ratings, no. of channels 1

Typ ESX10-TC-DC48V von E-T-A: Erweitert die Produktgruppe »Elektronischer Überstromschutz« für DC 48 V Anwendungen.

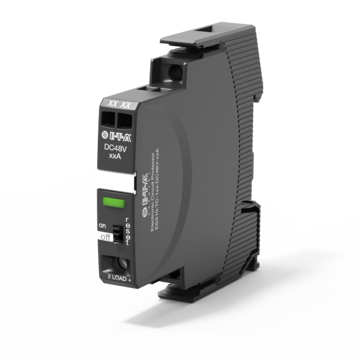

ESX10-TC DC 48 V

Electronic circuit protector, ESX10-TC-DC48V, DC 48 V, track-mountable, fixed current ratings, no. of channels: 1

ESX60D

Smart electronic circuit protector, 2-channel, communicative, pluggable

Typ ESX300-S minus von E-T-A: Gewährleistet mittels elektr. Strombegrenzung und Lastabschaltung den sicheren Überstromschutz.

ESX300-S minus

Electronic circuit protector, ESX300-S minus, DC -48 V, plug-in type

Typ ESX300-S plus von E-T-A: Gewährleistet mittels elektr. Strombegrenzung und -Lastabschaltung den sicheren Überstromschutz.

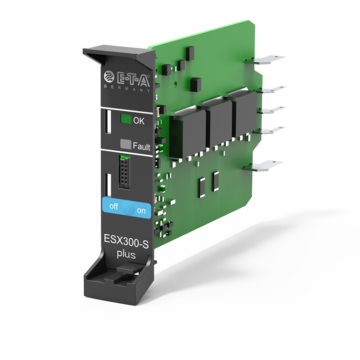

ESX300-S plus

Electronic circuit protector, ESX300-S plus, DC +24 V, DC +48 V, DC +60 V, plug-in type

Typ REF16-S von E-T-A: Es sichert bei einer Baubreite von nur 12,5 mm alle DC 24 V Lastkreise selektiv ab.

REF16-S

Electronic circuit protector, REF16-S, DC 24 V, plug-in type, fixed current ratings, no. of channels 1

Typ REX12-T von E-T-A: Der Sicherungsautomat REX12-T bietet selektiven Überstomschutz.

REX12-T

Electronic circuit breaker, REX12-T, DC 24 V, rail mounting, fixed current ratings, no. of channels 1/2

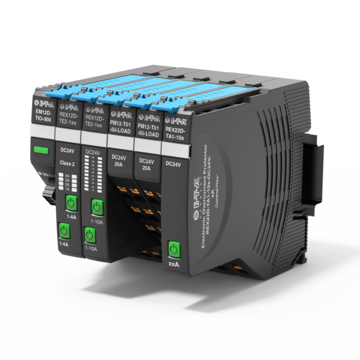

REX12D-T

Electronic circuit breaker, REX12D-T, DC 24 V, rail mounting, fixed and variable current ratings, no. of channels 1/2, IO link, Modbus-RTU
