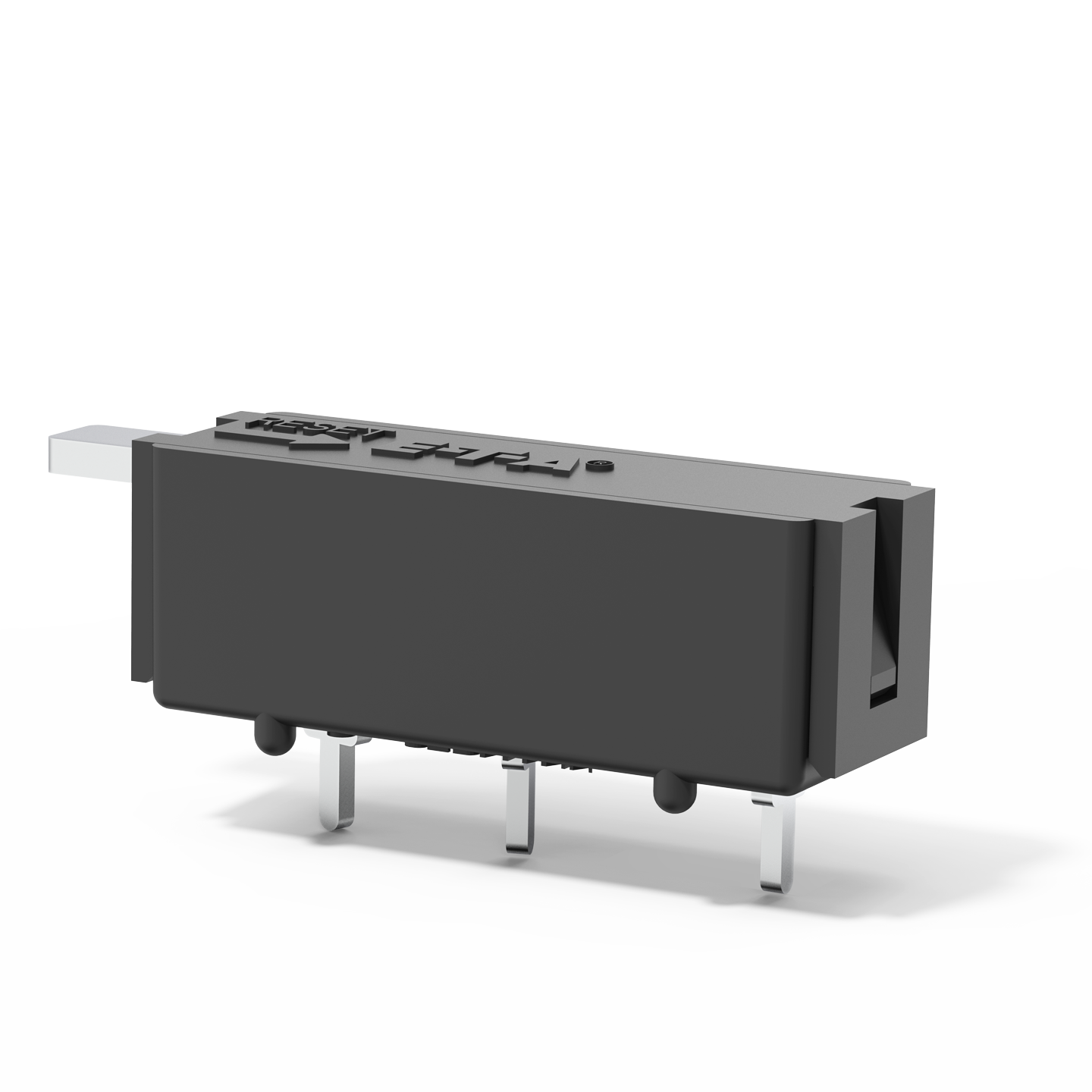

Type: 1410-L2

Description

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934), PCB mounting. Miniaturised construction minimises PCB real estate required. Type 1410-L2 features changeover contacts suitable for providing status output signals. Largely temperature-insensitive.

Voltage rating
  • AC 240 V
  • DC 28 V (DC 50 V upon request)
  • UL/CSA: AC 250 V
  • UL/CSA: AC 50 V
Current ratings from 0.63 A until 10 A
Number of poles single pole
Mounting method printed circuit board
Terminal design solder terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 500 operations at 2 x IN, AC, resistive

500 operations at 2 x IN, DC, inductive
Interrupting capacity Icn 0.63...2 A: 12 x IN

2.5...8 A: 8 x IN AC, max 50 A



10 A: 6 x IN AC

3.15...10 A: 10 x IN DC
Certificates VDE, CSA, UL

Accessories

Order number Description
Y 307 117 02 knurled nut
Y 300 192 01 hex nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
