Type 1610-H2

~ 40 mm

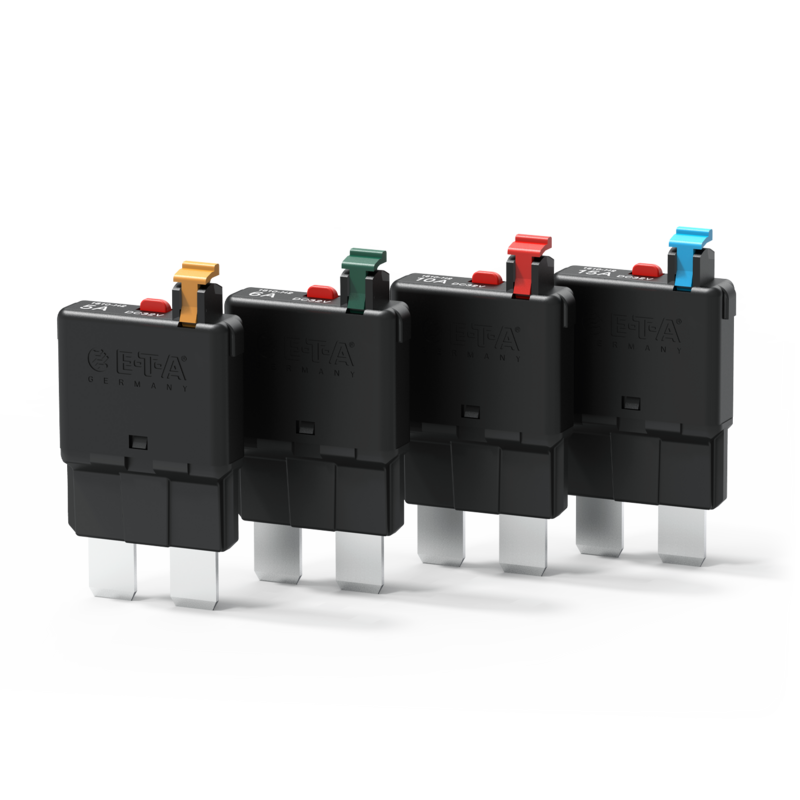

Typ 1610-H2 von E-T-A: Einpoliger, thermischer Kfz-Sicherungsautomat in sehr schmaler Bauform:

Description

Data sheet

Miniaturised single pole press-to-reset cycling trip free thermal circuit breaker designed for automotive fuse block installation.

Extends the benefits of circuit breaker performance and convenience to applications which are cost critical. Colour-coded manual release buttons available. Standard trip curve to ISO 10924.

Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.

Technical Data

Voltage rating
  • DC 32 V
Current ratings from 5A up to 30 A
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 300 operations at <= 50 A
Interrupting capacity Icn >= 3 break operations at 150 A, or

>= 1 break operation at 2,000 A
Certificates UL 1500

Accessories

Order number Description
12-P10/-J20/-A10

sockets
X21058801-04

Connector bus links -P10

01 = 1.5 mm2 brown



02 = 2.5 mm2 black



03 = 2.5 mm2 red



04 = 2.5 mm2 blue
X21115701/02

busbar for mounting socket

01 = with terminal



02 = without terminal

Applications

  • Automobiles
  • Commercial Vehicles
  • Lighting technology
  • Watercraft & Vehicles
