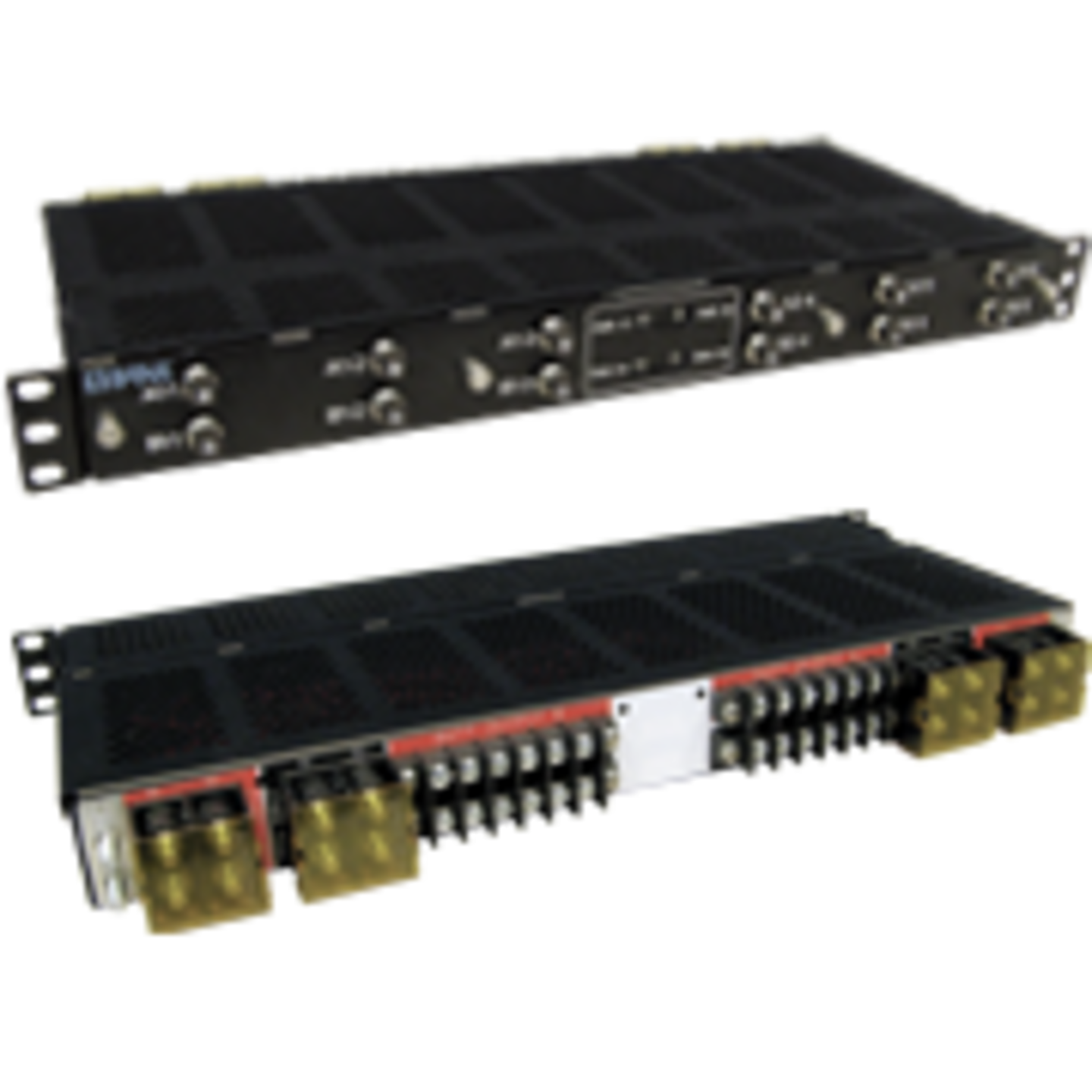

Type PDB-8340-0606-(XX) - 1RU Power Management System
This 1RU power management system is designed to accommodate E-T-A type 8340 hydraulic-magnetic, UL 1077 circuit breakers with isolated A and B power regions for redundancy. The standard 19" mounting rack chassis design is available with mounting flange options for EIA 19", 23" and ETSI standard mounting. Input connection terminals accept common 2-hole compression lugs up to 2 AWG cable or 2-hole narrow tongue compression lugs up to 2/0 cable. Output S/D output terminals accept standard wiring tongue terminals up to 10 AWG cable or narrow tongue up to 8 AWG. The system has an integrated voltage status indicator on each input. Options include: alarm indicators and alarm outputs as well as a jumper bar for reduced input configurations.
