Type: Economy Power-D-Box®
Description

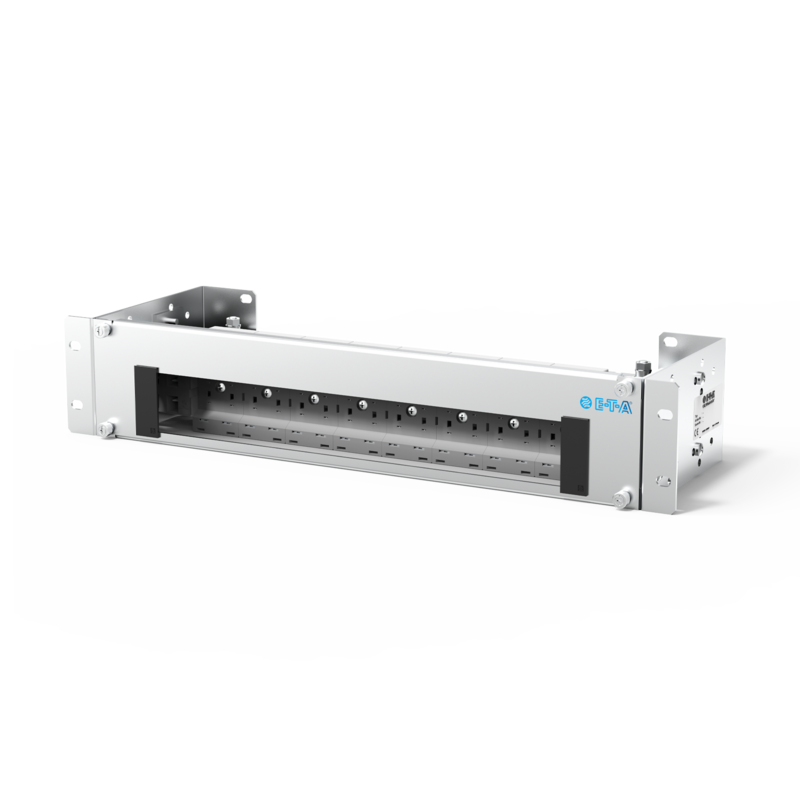

The Power-D-Box® is a compact 2RU power distribution system (2 rack units). The redundantly designed system accommodates 8335 or 8340-F magnetic or hydraulic-magnetic plug-in type circuit breakers.
The busbars as well as the group signalisation are insulated in a moulded enclosure, so that live parts cannot be touched. Connection of loads is from the front via blade terminals which are protected against reverse polarity. Besides various preferred types, we can offer individual solutions, perfectly tailored to your application.
| Mounting method | racks |
|---|---|
| Circuit breaker type | hydraulic-magnetic |
| Dimensions |
height 2U (88.9 mm) installation depth 150 mm width 19 (482.6 mm) width ETSI (531.4 mm) |
| Max. rated voltage | DC -80 V |
| Number of channels |
2 x 2 redundant 2 x 4 redundant 2 x 6 redundant 2 x 8 redundant |
| For circuit breaker type | 8340-F |
| Supply | redundant |
| Signalling | Break contacts connected in parallel |
| Terminal type of auxiliary contacts | |
| Further technical data |
are available upon request |
Accessories
| Order number | Description | |
|---|---|---|
| X22262501 |
load output terminal |
|
| X22284701 |
load output terminal |
|
| X22284801 |
load output terminal |
|
| Y30856311 |
blanking piece 8340, 8345 |
|
| X22254711 |
withdrawal tool |
Applications
- Automation
- Telecom & Datacom
Downloads
Datasheet & Explanations
Power Management Solutions
Standard power mangement solutions for use in 19", 23" or ETSI standard rack sizes.
