Type: SVS20


210 mm

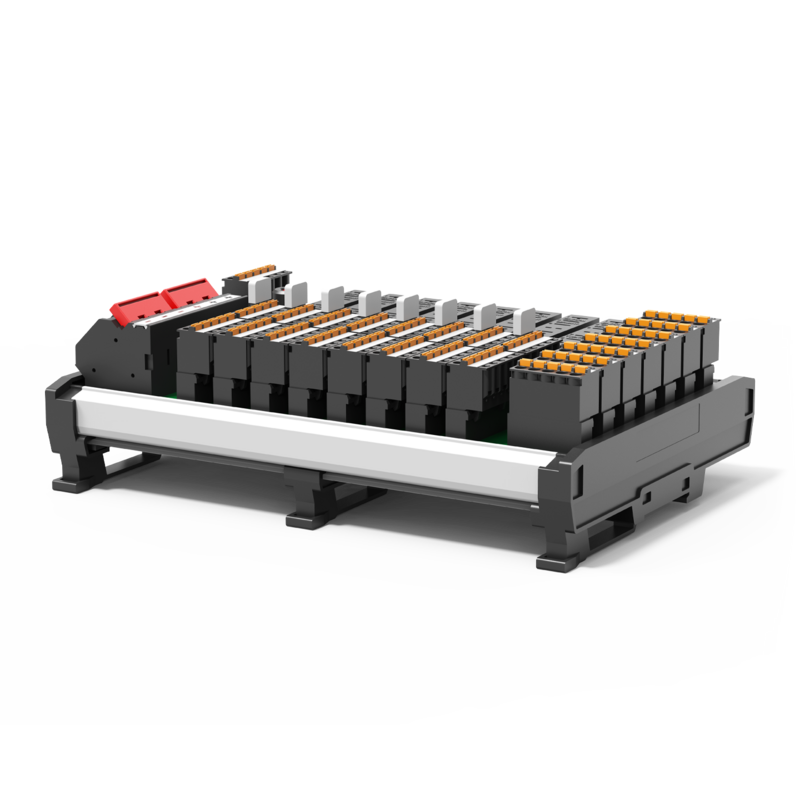

Typ SVS20 von E-T-A: SVS20 für DIN-Hutschienenmontage verteilt die von DC 24 V Schaltnetzteil eingespeisten Spannungspot.

The power distribution system SVS20 for rail mounting distributes the current supplied by a DC 24 V switch-mode power supply to 8 channels and selectively protects the connected loads by means of the inserted circuit breakers. With a max. load current of 8 A per channel and a max. total current of 40 A the SVS20 provides ease of wiring in short-circuit limited DC 24 V applications. Eight protected "L+” load outputs per channel and 35 minus terminals help to reduce wiring time significantly.

Mounting method DIN rail
Circuit breaker type electronics


Order number Description



insulated wire bridge


  • Automation
  • Chemical, Oil & Gas
  • Pharmaceutical & Food
  • Power Engineering DC 24 V


Datasheet & Explanations
