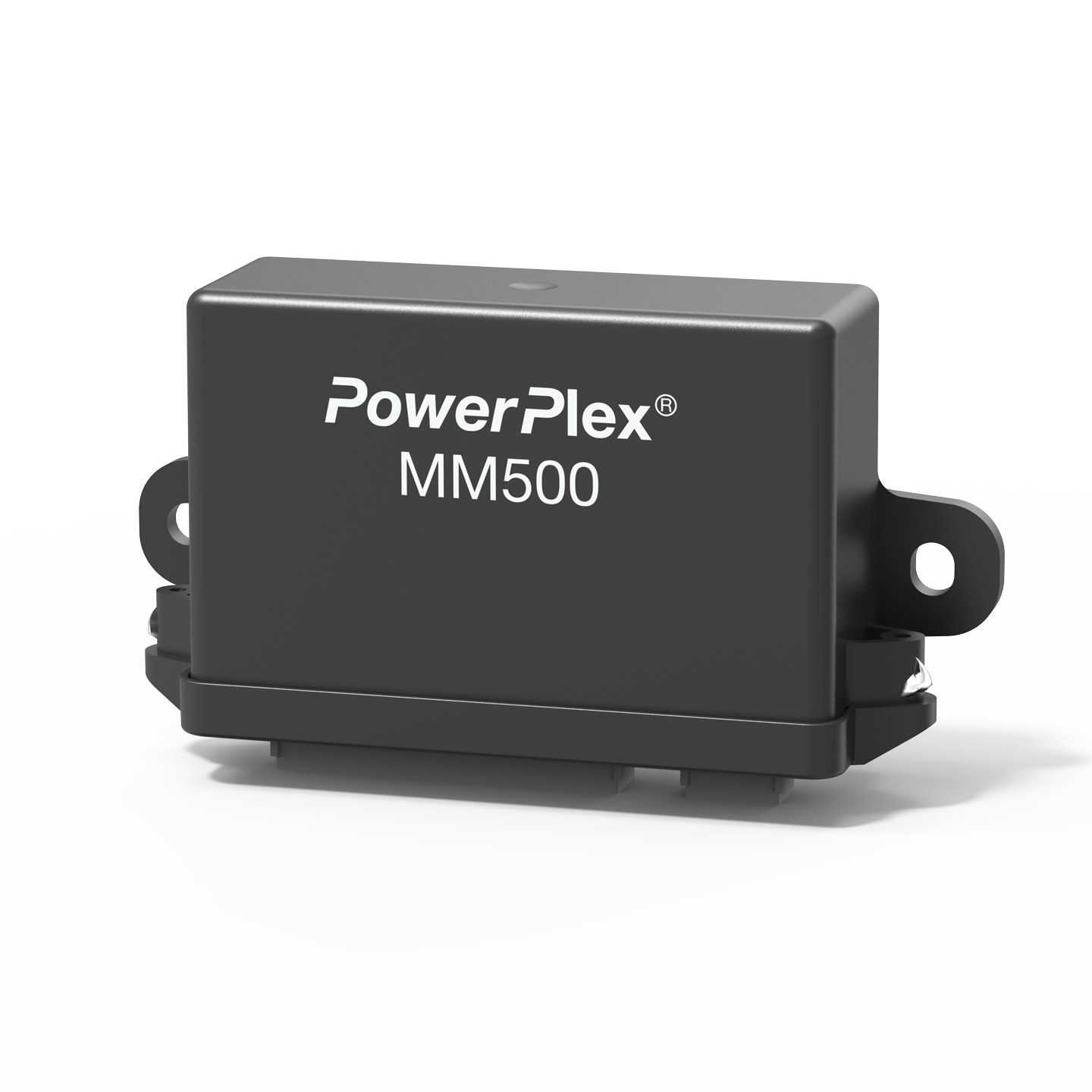

Type PowerPlex® Mini Module MM500

~ 72 mm

Description

The PowerPlex® MM500 is our Mini Module and is perfectly suitable for LEDs and ambient lighting. Its small size allows installation in places where space is at a premium.

As standard, the PowerPlex® Mini Module is equipped with eight multifunctional inputs. They can be configured as digital or analog inputs. Its multifunctionality makes is suitable for battery monitoring as well as for voltage and resistance measurement, e.g. with level sensors.

Product Features:

  • Multifunctional inputs
  • Configurable outputs (8 x 4 A)
  • Software-controlled overcurrent protection with current measurement
  • Hardware-controlled safety disconnection
  • Self-protection of power transistors

Application examples:

  • Control and monitoring of DC loads
  • Control, dimming and monitoring of lights
  • Voltage measurement
  • Current measurement
  • Temperature measurement
  • Control of heating and air-conditioning systems
  • Fuel flow monitoring
  • Fuel tank level / remaining volume
  • Water tank levels / remaining volume
  • Pump control and monitoring

Technical Data

Voltage rating DC 12 V/24 V
Degree of protection IP22
Operating temperature -40 ... +70 °C (-40 ... +158 °F)
with derating above +50 °C (+122 °F)
Max. total current per module 18 A
Inputs 8 multifunctional inputs, configurable as digital/analog inputs
Outputs 8 x 4 A, dimmable
Certificates KBA E1 (ECE-R10)

Accessories

Order number Description
XPP-USBC0

USB/CAN converter

XPP-USBC1

USB/CAN converter (opto-decoupled)

XPP-CP-100

Connector package for MM500/TP070

XPP-TS500R-HB

Temperature sensor

XPP-TS500R-PH

Temperature sensor

Applications

  • Watercraft & Vehicles
