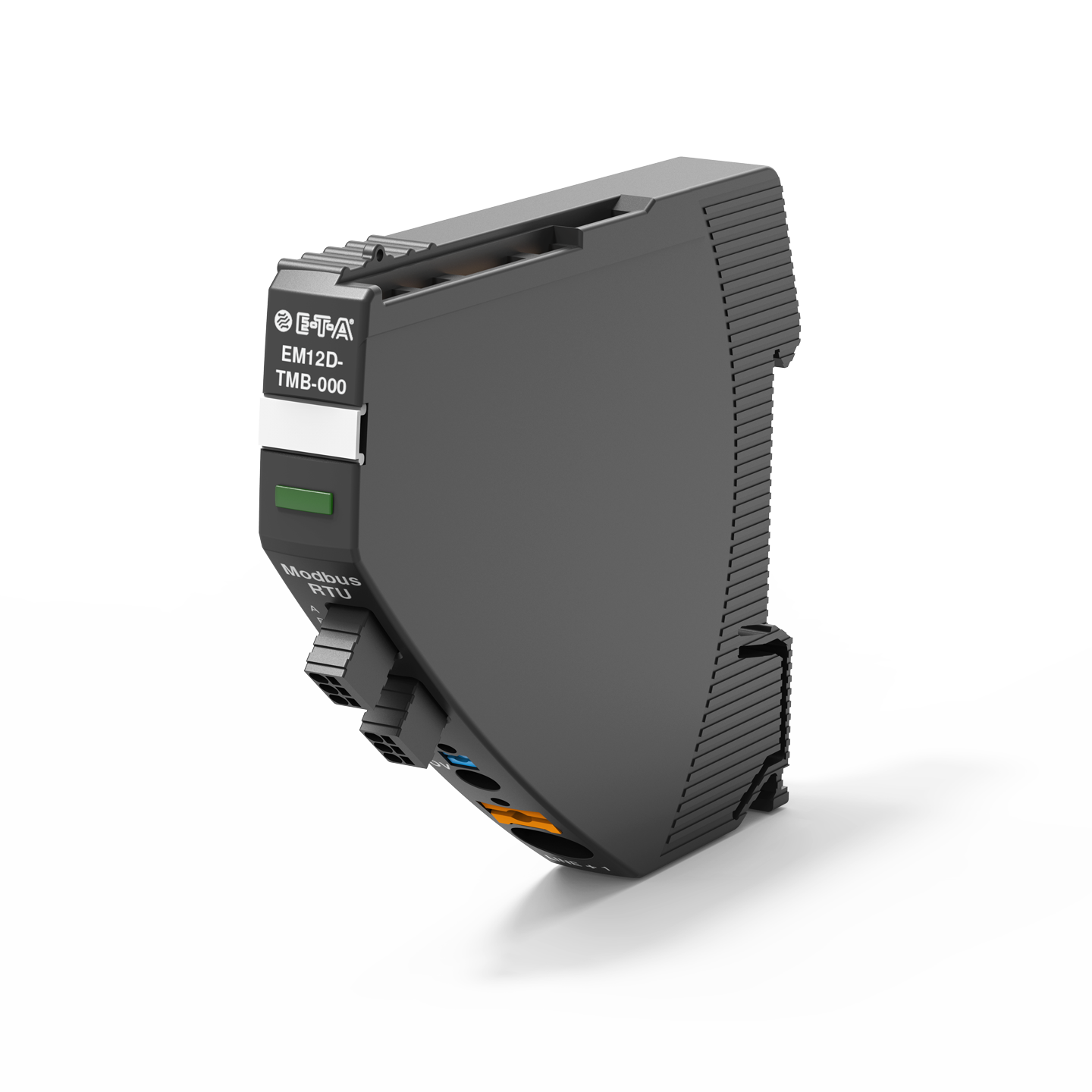

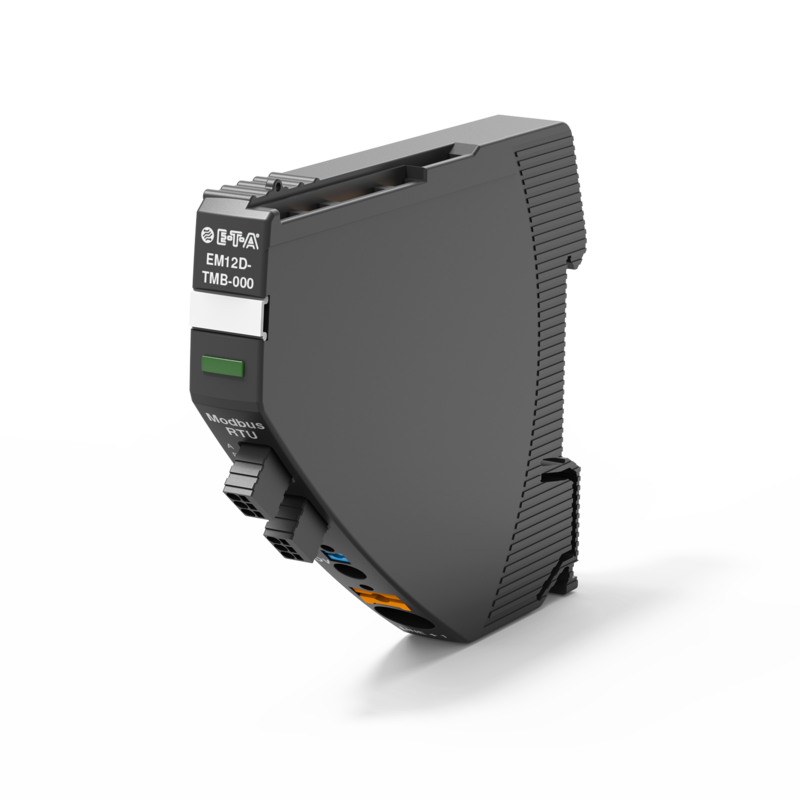

Type EM12D-TMB
Description
The EM12D-T supply module receives the DC 24 V supply voltage, e.g. from a switch mode power supply, and distributes it to the intelligent circuit protectors installed side by side via the integral connector arm of the REX12D-T. The communication interface of the EM12D-T, which is designed as an Modbus RTU device, enables many diagnosis and control commands to be sent to a superordinate Modbus RTU master of the control level.
Applications
- Mechanical engineering
- Automation
- Process industry
Technical Data
| Rated voltage | DC 24 V (18…30 V) |
|---|---|
| Rated current | 40 A |
| Ambient temperature | -30 °C ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 2367, UL 1310 NEC Class2, UL 508 listed, CSA C22.2 No. 14, CSA C22.2 No. 107.1, UL 121201 (Class I, Division 2, Groups A, B, C, D), CSA C22.2 No. 213, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
Downloads
- Data sheet 4.3 MB
Declarations of conformity | 9
- EU Declaration of Comformity 409.8 KB
- EU Declaration of Conformity (ATEX) 157.1 KB
- ATEX Declaration of Comformity 932.4 KB
- UKEX Declaration of Conformity 168.6 KB
- RMI CMRT 1.5 MB
- RMI EMRT 1.7 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 267.2 KB
- TSCA Letter of Confirmation 244.1 KB
CAD data | 1
- EM12D-TMB 1.9 MB
E-plan macros | 1
- REX12D-T PM12 3.8 MB
