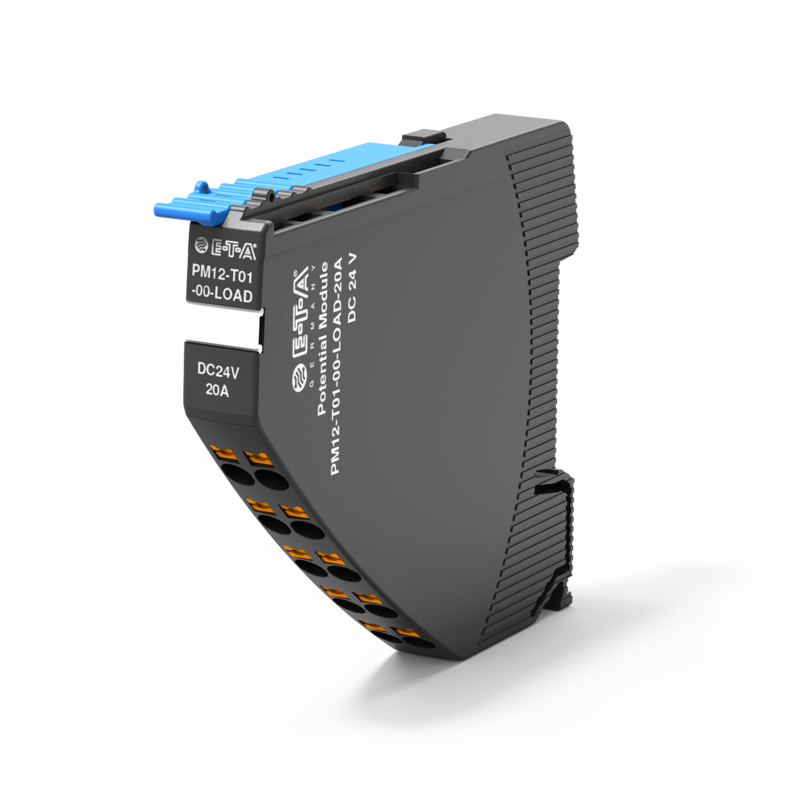

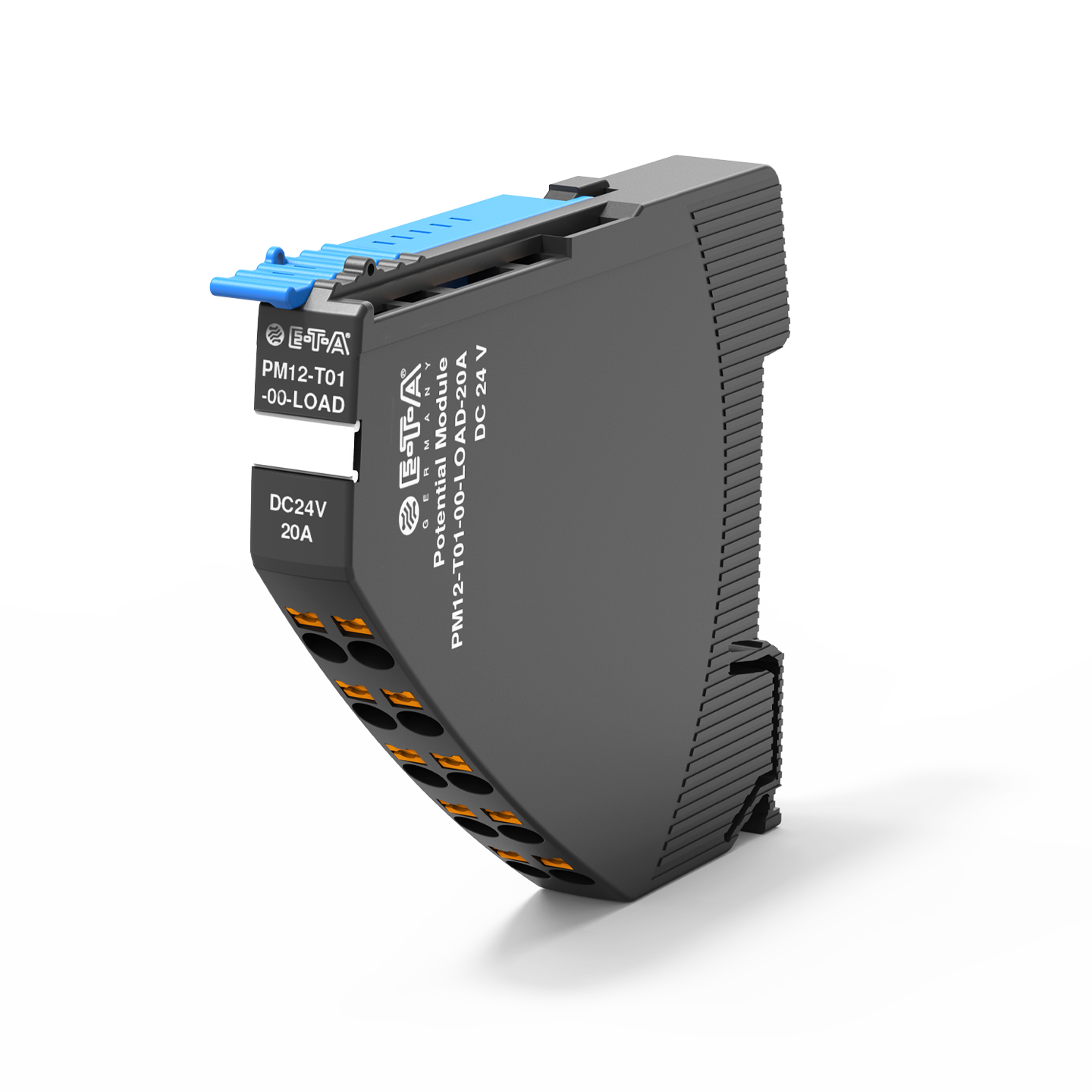

Type PM12-T (LOAD)
Description
The PM12-T potential distribution module enables +DC 24 V distribution in the REX system. The slim module saves space and enables direct assignment of the power distribution within the system. In the respective EPLAN software, the direct assignment can be easily and conveniently displayed, facilitating wiring and trouble-shooting.
The module is mounted on the right-hand side of the circuit protector whose load output is to be connected to the potential module.
Applications
- Mechanical engineering
- Automation
- Process industry
Technical Data
| Rated voltage | DC 24 V (0…30 V) |
|---|---|
| Rated current | 20 A |
| Ambient temperature | -30 ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 1059, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
