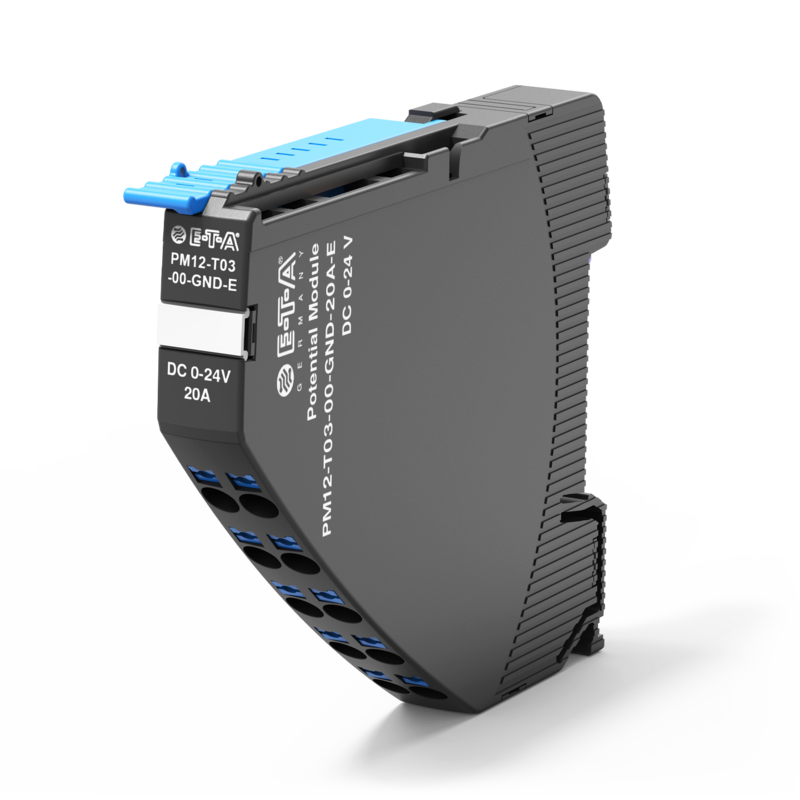

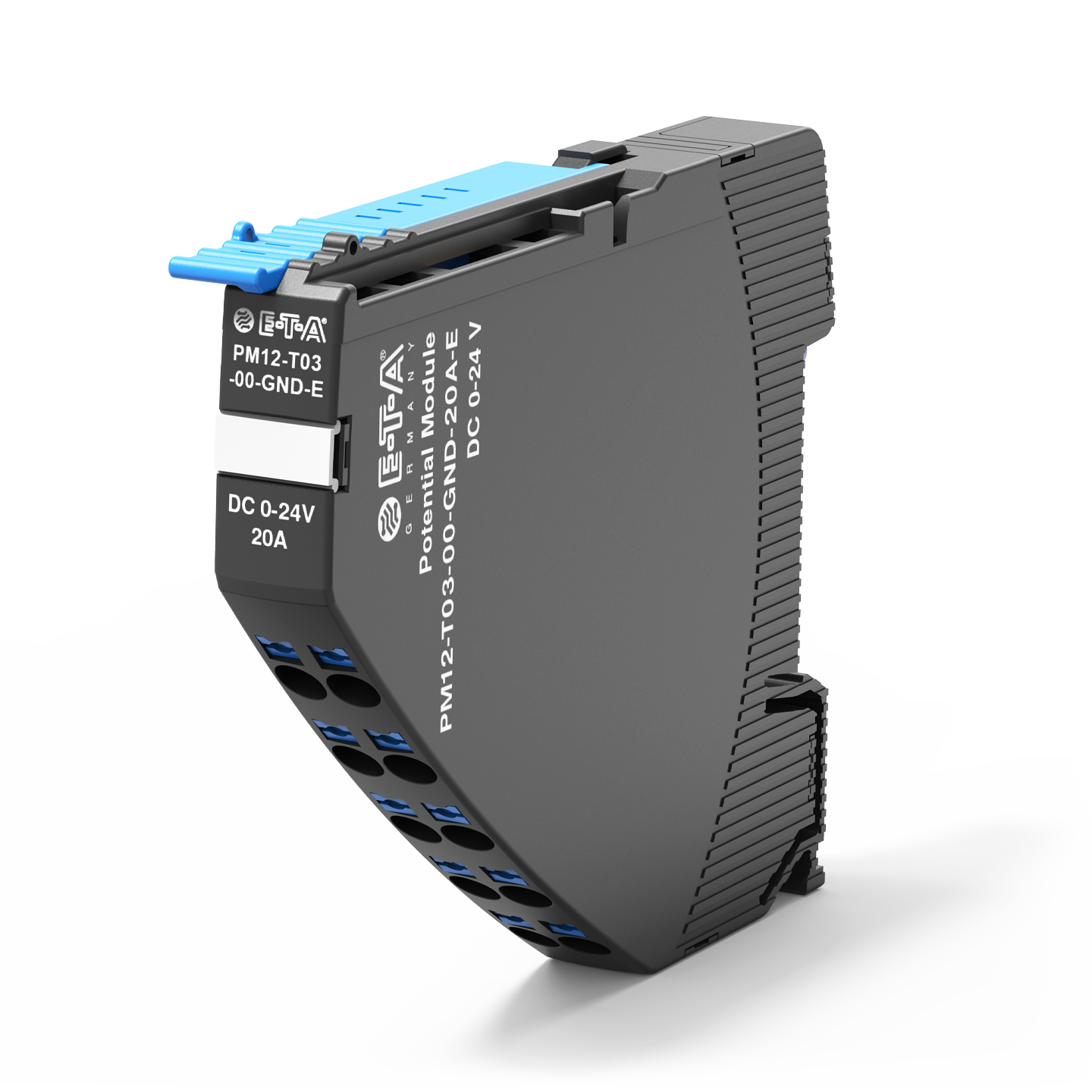

Type PM12-T (GND)
Description
The PM12-T potential distribution module enables DC 0 V distribution in the REX system. It is directly connected to an EM12-T00-x00-GND-40A power supply module, which takes the DC 0 V (GND) of the supply voltage, e.g. from a pulsed switch mode power supply unit, and distributes it via the integral contact arm.
All GND modules blocks are mounted separately on the DIN rail.
Applications:
- Mechanical engineering
- Automation
- Process industry
Technical Data
| Rated voltage | DC 0 V (0…30 V) |
|---|---|
| Rated current | 20 A |
| Ambient temperature | -30 ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 1059, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
