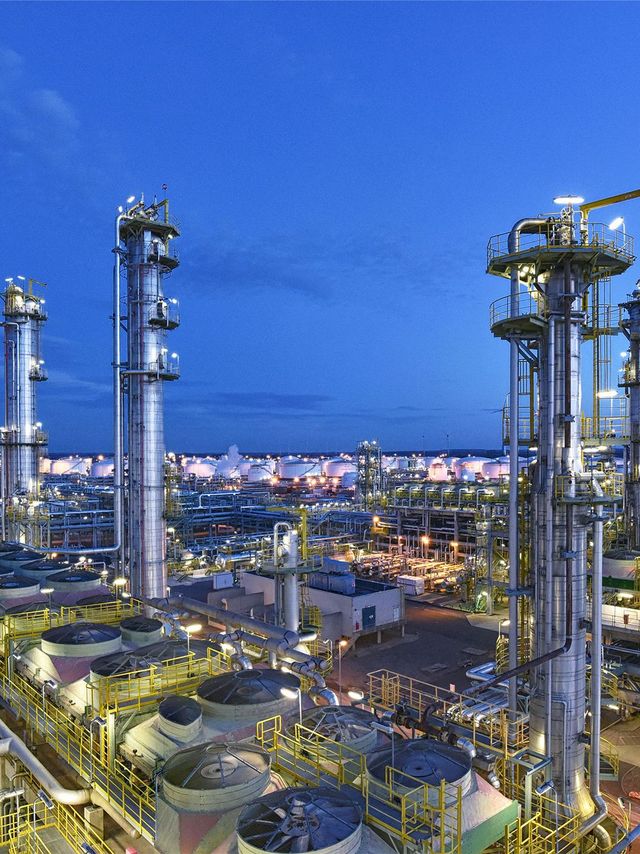

In oil & gas, chemicals, and other hazardous industries, uptime and safety are mission-critical. E-T-A’s IECEx & ATEX Zone 2 certified power solution is engineered to deliver compliance without compromise—combining safety certification with modular design, transparent diagnostics, and remote reset capabilities. Whether your systems are offshore, inside refineries, or in other hazardous environments, this solution keeps your DC 24 V control panels safe, connected, and running at peak performance.
In hazardous environments, even routine troubleshooting can mean costly delays and unnecessary risk. With E-T-A’s power solution for Zone 2 hazardous locations you can:
Maximize uptime
Resettable protection reduces unplanned outages and cuts time spent on manual maintenance.
Gain real-time system visibility
Diagnostics & communication-capable modules deliver transparent performance data
Access remotely
Monitor status and reset from anywhere, eliminating the need to send maintenance staff to site.
Standardize globally
Scalable solutions support digital harmonization across global sites while enabling local flexibility.
Accelerate installation
Tool-free, modular connection technology reduces wiring effort and installation time by up to 50%.

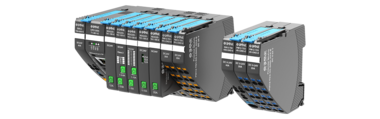

Solutions for IECEx & ATEX Zone 2 Hazardous Locations
Built to perform in hazardous settings: certified protection, streamlined installation, and uninterrupted uptime.

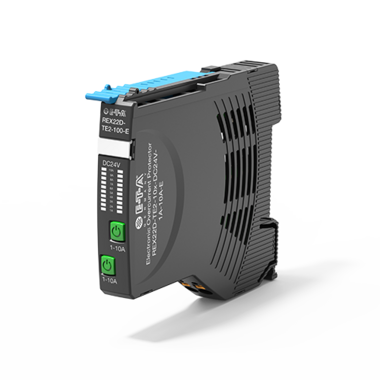

REX22D-T Circuit Protector
Approvals
ATEX, IECEx & UL12.12.01
Rated Voltage
24 VDC
Current Rating
1 - 20A (fixed (...-T) or adjustable (...-TE2)
Dimensions
12.5mm
Communication
EtherNet/IP, PROFINET, Modbus TCP, and EtherCAT

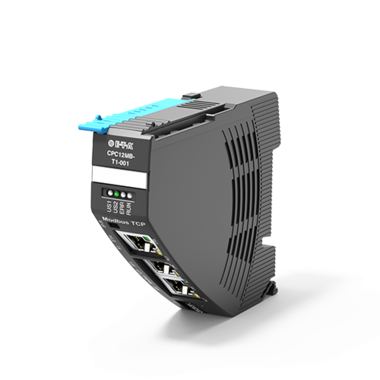

CPC12 Bus Controller
Approvals
ATEX, IECEx & UL12.12.01
Rated Voltage
24 VDC
Dimensions
23 mm
Communication
EtherNet/IP, PROFINET, Modbus TCP, and EtherCAT

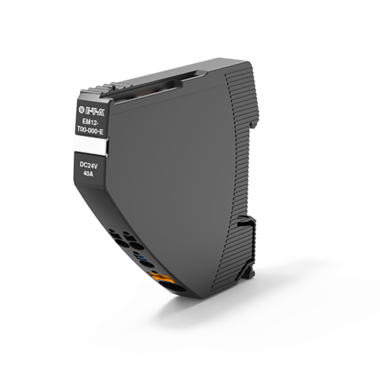

EM12 Supply Module
Approvals
ATEX, IECEx & UL12.12.01
Rated Voltage
24 VDC
Operating Current
max. load 40 A
Dimensions
12.5mm

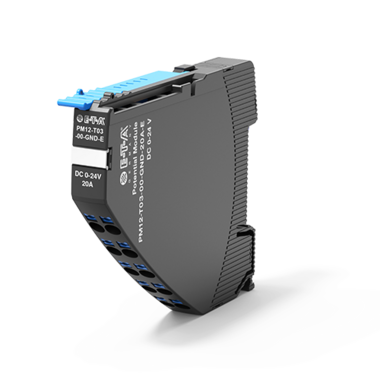

PM12 Distribution Module
Approvals
ATEX, IECEx & UL12.12.01
Rated Voltage
24 VDC
Operating Current
max. load 20 A
Dimensions
12.5mm
Ready to see it in Action?
Protect your systems with certified safety while gaining smarter transparency and modular flexibility. Schedule a demo to see how E-T-A’s hazardous location power solution can support your operations.
