Type ESX50D-S
Description

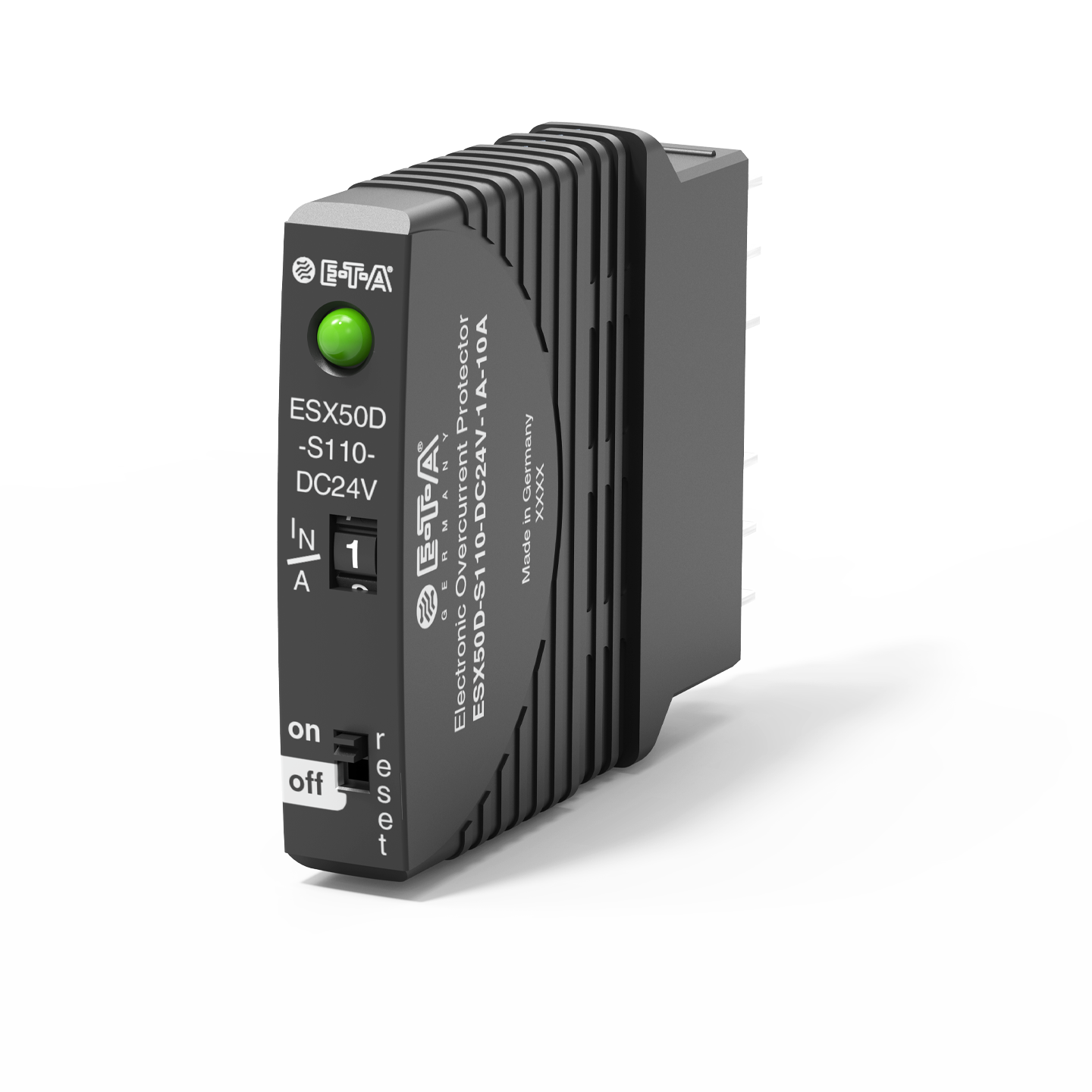

The type ESX50D-Sxx is an electronic circuit protector capable of communication, which forms the intelligent power distribution system ControlPlex® type SVS201-CP together with the bus terminal controller CPC10 and the power distribution board SVS201-PWR.
By means of its communication interface, the measuring values recorded by the ESX50D-Sxx will be forwarded to the CPC10 via the proprietary device bus ELBus® and then to a superordinate
programmable control unit. This allows flexible adjustment of the current rating and its parameters to the requirements of the system and its direct controllability. So the user can import the relevant information regarding his DC 24 V voltage supply and process it accordingly.
The ESX50D-S is available in two different versions. The first version has a rotary switch to allow current rating adjustment directly on the circuit protector in a range from 1 A to 10 A. The second version offers this adjustment feature via a field bus system or a USB service interface.
-
Final Order (LOD): 31.05.2026
-
Final Delivery (LDD): 30.11.2026
Technical Data
| operating voltage |
DC 24 V 18...32 V |
|---|---|
| Voltage rating |
|
| Current ratings |
1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 A 9 A 10 A |
| Number of poles | 1-pole |
| Load disconnection |
short circuit: typically 100 ms overload: typically 3 s short circuit: typically 100 ms overload: typically 5 s |
| Current limitation | typically 1,2 x IN |
| Status indication | 1 LED green/orange/red: status/fault |
| Temperature range | 0...+50 °C |
| Terminal design | blade terminals 6.3 mm |
| Mounting method | Mounting of enclosure plug-in type, suitable for SVS201-PWR-xx |
