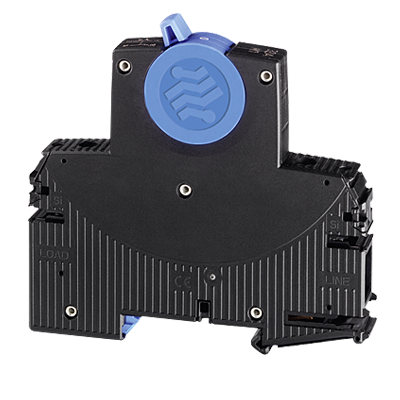

Type: 4220-T
Single, double and three pole thermal-magnetic circuit breaker with high rupture capacity to UL 489 (5 kA), EN/IEC 60934 (6kA) and UL 1077 (5 kA). With toggle actuation, positively trip-free mechanism, a choice of characteristic curves and a wide range of current ratings in finely graded steps from 0.1A through 32 A. Auxiliary contacts (make or break contacts) are optionally available. Track-mountable design, width only 12.5 mm. Ease of wiring by means of an integral busbar concept: line entry busbar LINE+ and signal busbars/signal jumpers.
Technical Data
| Voltage rating: | |
|
|
| Current ratings: | |
| from 0.1A to 32A |
|
| Typical life: | |
| UL 489 AC 120 V: 6 000 operations at 1 x IN, inductive IEC 60934 AC 240/415 V: 1 000 operations at 1 x IN, inductive AC 240 V: 6 000 operations at 1 x IN, inductive DC 60 V: 6 000 operations at 1 x IN, resistive UL 1077 AC 277/480V: 3 000 operations at 1 x IN, inductive AC 277 V: 6 000 operations at 1 x IN, inductive DC 60 V: 6 000 operations at 1 x IN, resistive |
|
| Interrupting capacity Icn: | |
| UL 489: AC 120 V: 5 000 A IEC 60934: AC 240 V, AC 240/415 V, DC 60 V: 6 000 A UL 1077: AC 277 V, AC 277/480 V, DC 60 V: 5 000 A |
|
| Number of poles: | |
|
|
| Mounting method: | |
|
|
| Terminal design: | |
|
|
| Actuation: | |
|
|
| Auxiliary contacts: | |
|
|
| Water splash protection: | |
|
Accessories
| Order number | Description |
| X 222 005 01-03 | signal busbar 01 = blue 02 = red 03 = grey |
| X 222 486 25 | signal busbar grey |
| X 222 611 01/02 | busbar 01 = red 02 = grey |
| X 222 977 50 | label |
Applications
- Automotive Manufacturing
- Chemical, Oil & Gas
- Power Engineering DC 24 V
- Power Engineering AC 240 V
- Automation & Process Control
- Pharmaceutical & Food
- Steel Production
- Telecom & Datacom
- Minus DC 48 V
- Automation
