Type: 1120

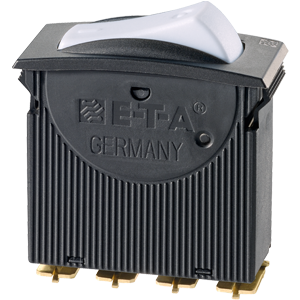

Double pole combined circuit breaker and ON/OFF switch with rocker actuation. Specially suited to single-phase applications. Snap-in front panel mounting. Thermal positively trip free mechanism ensures reliable overcurrent protection and safe physical isolation of the load circuit.
Attractively styled, with rocker illumination optional. The status of the switching contacts is shown by the position of the rocker actuator.
For high volume requirements customer-specific designs can be offered for the front bezel and the rocker.
It meets the requirements of the CBE standard EN 60934 (IEC 60934): S type, TO.
Meets the requirements regarding fire resistance of EN 60335-1 : 2007-02 Safety of household and similar electrical appliances.
Minimum ordering quantities apply!
Technical Data
| Voltage rating: | |
|
|
| Current ratings: | |
| from 3A to 16A |
|
| Typical life: | |
| 10,000 operations at IN, inductive | |
| Interrupting capacity Icn: | |
| AC 240 V: 200 A, 1 and 2 pole DC 50 V: 200 A, 2 pole DC 32 V: 200 A, 1 and 2 pole |
|
| Number of poles: | |
|
|
| Mounting method: | |
|
|
| Terminal design: | |
|
|
| Actuation: | |
|
|
| Auxiliary contacts: | |
|
|
| Water splash protection: | |
|
|
| Illumination: | |
|
Applications
- Watercraft & Vehicles
- Medical Equipment
- Minus DC 48 V
- Household, Hobby & Garden Equipment
- Lighting Equipment
