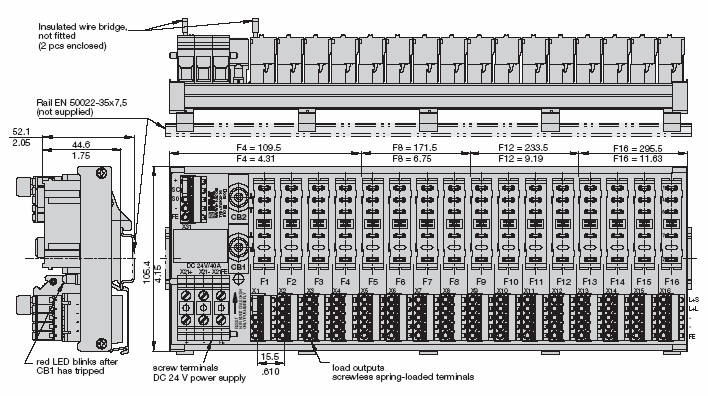

Power Distribution System - SVS02The E-T-A power distribution system SVS02 is designed to accommodate the electronic circuit protection series ESS20-003. It distributes the current supplied by a switch mode power supply up to 40 A to 4, 8, 12 or 16 channels. Main connection is via screw terminals. The individual circuit protectors can be plugged in.
Loads are connected via spring-loaded screwless terminals. The power distribution includes integral wiring of the signalisation of the individual channels which can be combined to a group signal. The SVS02 can be snapped onto a DIN symmetrical rail.
|
