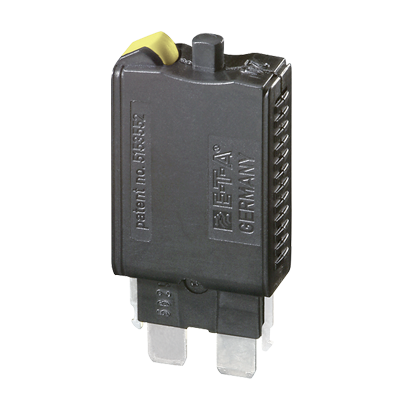

Type: 1170

Compact single pole thermal circuit breaker with push-to-reset, tease free, trip free, snap action mechanism and separate (colour coded) manual release. Combining full feature circuit breaker protection and convenience with low cost of ownership benefits. Fitted with blade terminals for plug-in mounting.
Type III to SAE J 553.

Version 1176 is available especially for the automotive industry (current ratings correspond to those of blade fuses).

Data sheet

Technical Data

Voltage rating:
  • DC 28 V
Current ratings:
from 3 A to 25 A
Typical life:
at rated current:
3...25 A 6,000 opeations at IN
3...20 A 3,000 opeations at 2 x IN
25 A 1,000 opeations at 2 x IN
Interrupting capacity Icn:
400 A
Number of poles:
  • single pole
Mounting method:
  • socket
Terminal design:
  • blade terminals
Actuation:
  • manual release
  • push button
Auxiliary contacts:
  • without auxiliary contacts
Water splash protection:
  • without water splash protection
Illumination:
  • without illumination

Accessories

Order numberDescription
12-P10/-J20/-A10sockets
X 210 588 01-04Connector bus links -P10
01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue
X 223 076 02SocketPlus 12
Y 309 578 01cross connector 2-pole for SocketPlus 12
Y 309 579 11label for SocketPlus 12
Y 309 580 02end piece for SocketPlus 12
X 211 157 01/02busbar for mounting socket
01 = with terminal
02 = without terminal

Applications

  • Watercraft & Vehicles
  • Automobiles
  • Commercial Vehicles
  • Rail Vehicles
  • Lighting Equipment
